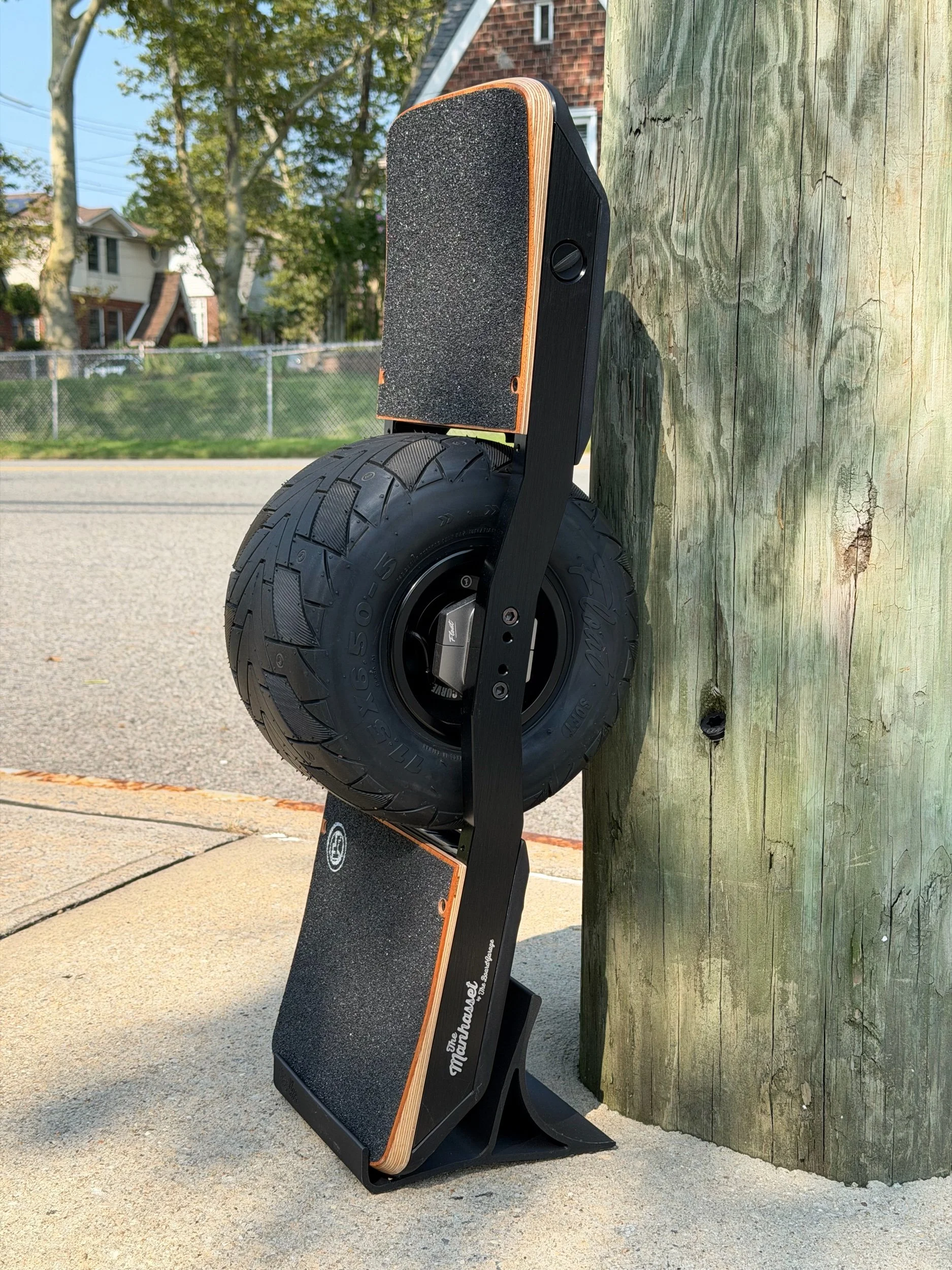

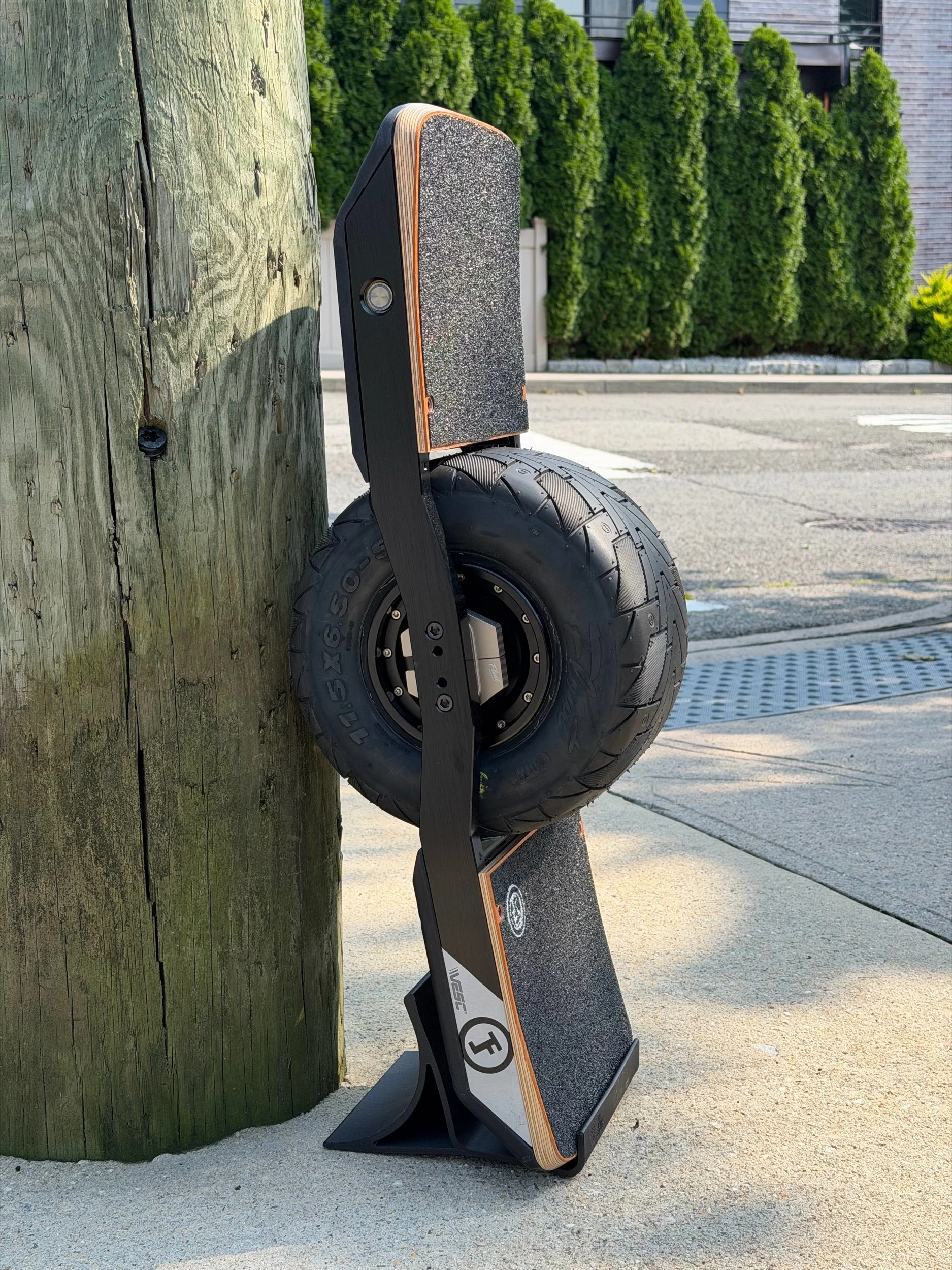

Custom ‘Manhasset’ VESC One Wheel Board Build (Clearance)

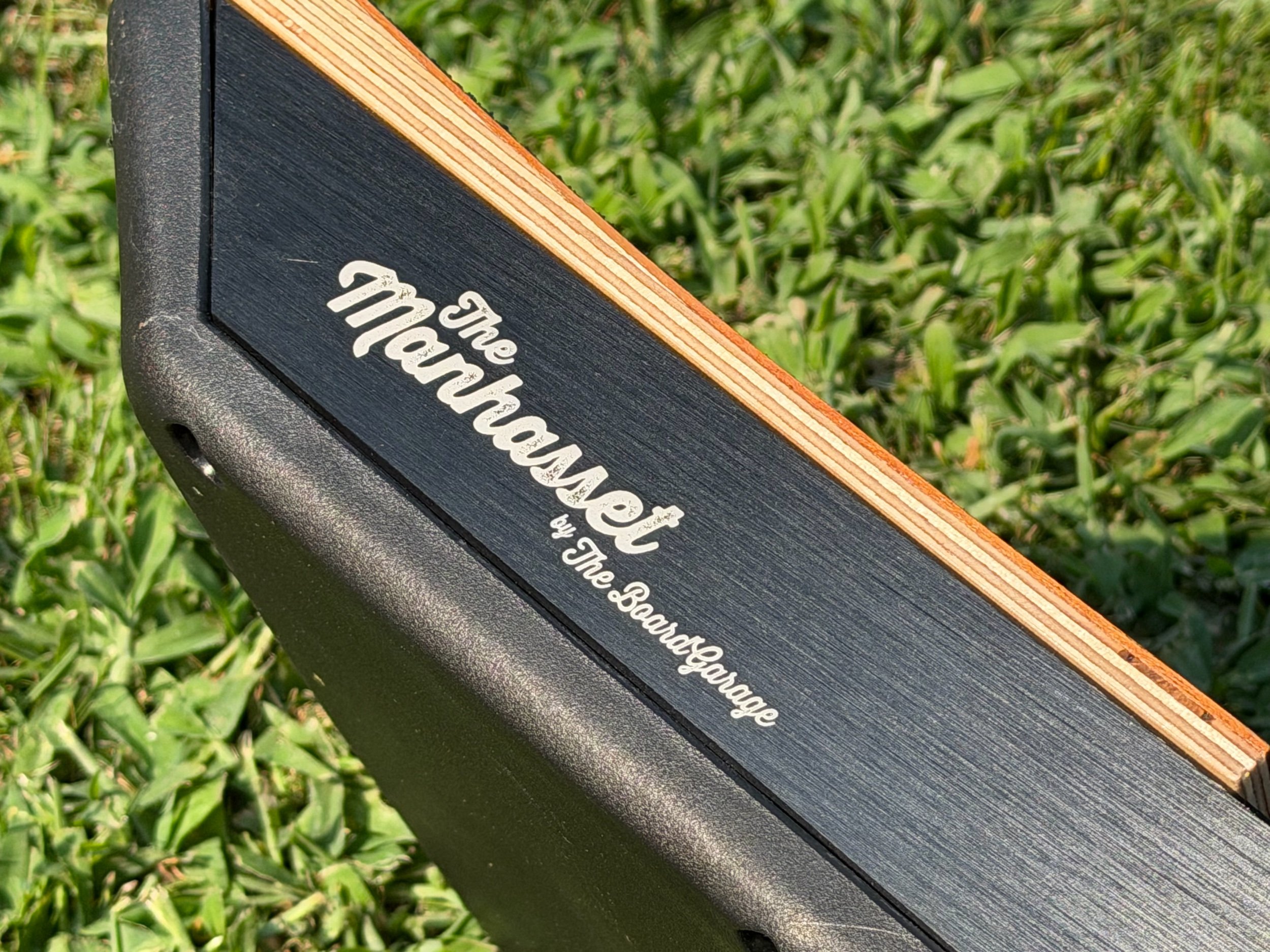

This is a newly built custom VESC based one wheel board. It is working, configured, and complete. This board configuration is a close copy of my current daily use board. The configuration is what I personally call “The Manhasset”. The build itself uses premium tested parts, and are assembled cleanly with some of the most attentive care in this hobby.

My most recent range test gave me approximately 30 miles out of this configuration. (18-22mph, 185lb rider weight).

The board includes a matched 4 amp charger, and a board stand.

Specifications:

Front Box:

• Shaman Systems Little FOCer V4 VESC

• TFL “The Box” Enclosure

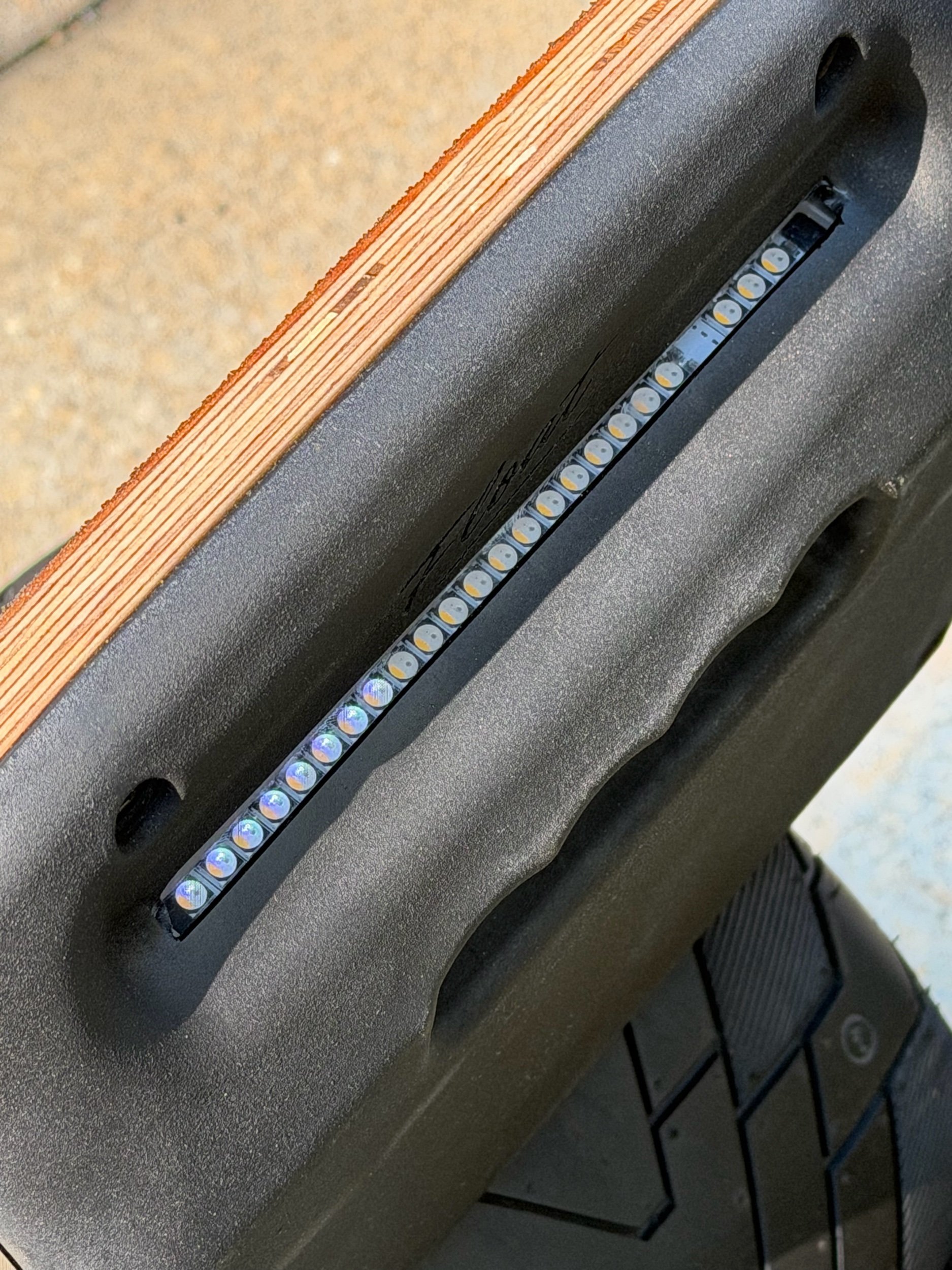

• AvaSpark 5v RGBW Headlight Bar

• Custom Wiring Connector Set (made in house)

• Flipsky External BLE Module (better connection than onboard BLE)

Rear Box:

• 19s2p 80v 10Ah Custom PCB Battery Pack (RS50 Cells) (684Wh)

• ENNOID XLITE V4 Smart VESC-Connected BMS

• TFL TORque Box 2

• Milled CNC Lid

• 5v RGBW Tail Light

Power Cable is custom made to suit the board, using FloatBoxx 14-Core cable stock.

Motor:

• Original XR Hypercore Stator

• TFL MTE 5” Hub, N48 Magnets, Black

• NSK Bearings Installed

• TFL Enduro 655 Tire, Soft Compound

Chassis:

• TFL WTF Rails in Matte Black w/ Custom Laser Engraving

• TORque Box 2 Compatible BANG Bumpers

• Traditional XR Wooden Footpads w/ TFL Grip Installed (still the most reliable sensor)
